Technical Specs

Parts breakdown set up manuel

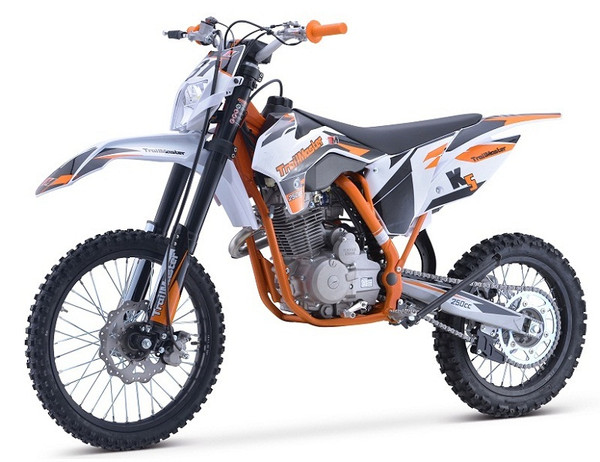

TM Dirt Bikes 31-33-36-38

Parts

POWER SYSTEM
Engine Type	ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled
Displacement	223 ml
Max Power	12/7000 kw/r/min
Max Torque	17.5/5500 N.m/r/min
Compression Ratio	9.3~9.9:1
Shift Type	Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
Bore and Stroke	65.5 x 62.2 mm
Min.Fuel Consumption	≤354(g/Kw.h)
Start Type	Electric & Kick Start
Carburetor	PE28
Ignition	Digital CDI
Transmission	#520 Chain, FT: 13T/RR: 47T Sprocket
PERFORMANCE
Front Fork	Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
Rear Shock	450mm Spring Pre-load None-Adjustable Shock
Front Wheel	Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 19
Rear Wheel	Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 16
Front Tires	70/100-19
Rear Tires	90/100-16
Front Brake	Dual Piston Caliper, 240mm Disc
Rear Brake	Single Piston Caliper, 240mm Disc
DETAILS
Frame	Lightweight ,Steel Tube Frame
Swing-Arm	Tube High Strength Steel Swingarm; L=560mm
Handle Bar	Tapered Aluminum #6061
Overall Size	78"X32"X45.7"/1980x810x1160 mm
Packing Size	67.3"X17.5"X34"/1710x445x860mm
Wheel Base	53.1"/1350 mm
Seat Height	34.6"/880 mm
Ground Clearance	13"/330 mm
Fuel Capacity	7.5 L / 2 Gal.
N.W	231lbs/105KG
G.W	297lbs/135KG

Product Dimensions
• L x W x H: 67*17.5*34 mm
• Weight : 302
