TrailMaster

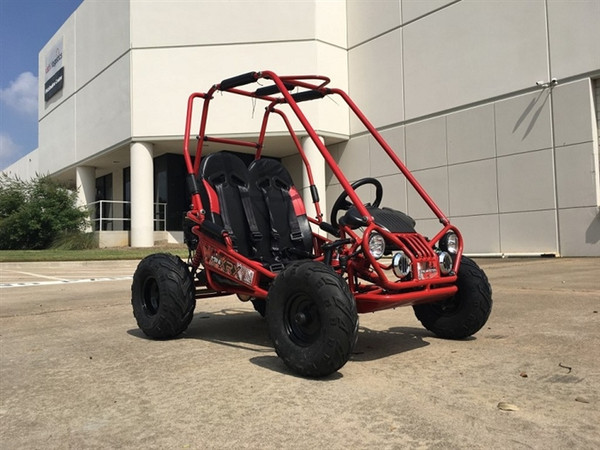

TrailMaster Mini XRX+ (Plus) Upgraded Go Kart with Bigger Tires, Frame, Wider Seat

Impressed? Swing by and see it up close! For Local Pick Up Please Come To Our Showroom Below 360 Power Sports 711 106 th st Arlington Texas 76011 by six flags over Texas
SKU:
TrailMaster-MINI-XRX-Plus

Local Pick-Up: You can come and pick up your New ride at 711 106th St Arlington, Tx 76011, however, In store we offer assembling service at additional charges, please call for details.

Financing our Products: Octane Desktop Banner Octane Mobile Banner
Bread-Pay-Finance american-first-finance

If you have a good credit score, please use Bread Pay as your first finance option (Add the item to your shopping cart then choose Bread Pay as your payment option). If you are denied with Bread Pay you can apply with the following link to get your finance approved with aff-webbanners-allwelcome Once you are approved with American First Finance please give our Finance department a call or text @ 817-825-8517 or 682-331-9451

Shipping and Fuel surcharge Notice:
About 99% of the customers will not get any shipping / Fuel surcharges, however only about 1% of the customers might get the surcharges on a case by case basis. Shipping to a very far away states and some rural area will incur extra shipping charges like NY, WA, SD, ND, MI, WA, CA, MT, OR, NV, ME, MA,PA, CT, DC, NH and the East Coast etc will be extra due to excessive fuel surcharges, and shipping to any islands will be extra. Please place your order normally if there are any extra shipping charges we will call you to inform you if not we will process your order as normal. We do not ship it to Hawaii and Alaska. Thank you for your understanding.

TrailMaster Mini XRX+ (Plus) Upgraded Go Kart

TrailMaster Mini XRX+ (Plus) Upgraded Go Kart with Bigger Tires, Frame, Wider Seat

$1,499.00

TrailMaster Mini XRX+ (Plus) Upgraded Go Kart with Bigger Tires, Frame, Wider Seat

$1,499.00







What is not assembled if buying fully assembled: Roll cages, steering wheel, battery;

TrailMaster Mini XRX+ (Plus) Upgraded Go Kart with Bigger Tires, Frame, Wider Seat


This 163cc 4-stroke, single-cylinder, air-cooled engine delivers 5.5HP at 3600 RPM, providing reliable and efficient performance. Featuring an electric start with a pull start backup, it ensures quick ignition, even without a battery. The automatic clutch offers smooth acceleration, while the chain-driven dual-wheel drive system enhances traction and stability. With a top speed of 12.4 mph and a 12-degree climbing ability, it is designed for fun and controlled riding. The dual A-arm front suspension and double oil-damped rear shock provide a smooth and comfortable experience. Front LED headlights, a horn, and a remote shutoff control fob add safety and convenience. An adjustable pedal system, sports seat with safety seatbelt, and speed governor make it suitable for various riders. With a max load of 400 lbs and a compact yet sturdy frame (58.5" x 36" x 43"), this vehicle is built for durability and adventure.

Key Features

163cc 4-stroke OHV engine – Delivers 5.5HP for reliable performance
Electric start with pull start backup – Can start even without a battery
Automatic clutch – Smooth and easy operation
Top speed of 12.4 mph – Safe yet exciting riding experience
Dual-wheel drive, live axle system – Provides excellent traction and stability
Fully suspended front & rear system – Absorbs shocks for a smoother ride
Rack and pinion steering – Ensures precise and easy maneuverability
Rear disc brake – Strong stopping power for enhanced safety
Adjustable pedal system – Comfortable fit for different rider heights
Sports seat with safety seatbelt – Secure and comfortable riding experience
Speed governor – Allows for controlled speed adjustments
LED headlights & horn – Improves visibility and alerts others
Remote shutoff control fob – Adds extra safety and parental control
Max load capacity of 400 lbs – Supports a wide range of riders

Technical Specs

Parts breakdown set up manuel

MINI XRX Parts Set Up Chain
Engine Information

Engine type: 4-stroke, single cylinder, air cooled
Displacement: 163cc
Max HP: 5.5hp/3600rpm
Max torque: 8 lb ft/3600rpm
Bore x stroke: 2.6 x 1.8 inches
Max speed: 12.4mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric Start with Pull Start Backup
Battery: 12V 9Ah
Carburetor brand: JF (RX)
Engine oil: SAE 15W-40

General Information

Clutch: Automatic
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension, F / R: Dual A-arm / Double Oil Damped Shock
Brakes: Disc
Tires, F / R: 145X70-6 / 16 X8-7
Fuel capacity: 1.2 gal
Weight, G.W. / N.W.: 209 / 176 lbs - 94 / 79 kg
Max load: 300 lbs

Dimension Information

Wheelbase: 42.6 inches
OA L x W x H: (‌Inches) 58.5x36x43 / (mm) 1485x914x1092
Height to seat: 13.6 inches
Min ground clearance: 4.02 inches
Pedal to seat back: 30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
Product Dimensions
• L x W x H: (mm) 1500x800x520 / (‌Inches) 59.06x31.49x20.47 mm
• L x W x H: 59.06x31.49x20.47 inches
• Volume : 0.624/22.04
• Weight : 280lbs / 127kg
